VNF Templates and Appliances

Virtualized Network Functions (VNFs) refers to virtualized software applications which offers network services, for example routers, firewalls, load balancers.

Adding a VNF template from an URL

To create a VNF appliance, user needs to register a VNF template and add VNF settings.

  1. Log in to the CloudStack UI as an administrator or end user.

  2. In the left navigation, choose Images -> Templates

  3. Click on the “Register template from URL” button.

  4. Specify the “Template type” to “VNF”

  5. Click on the OK button.

When the VNF template is registered successfully, you will see the template on the same page or under Network -> VNF templates.

Updating a VM template to VNF template

Users are able to update an existing VM template, which is uploaded from HTTP server or local, or created from volume, to be a VNF template.

  1. Log in to the CloudStack UI as an administrator or end user.

  2. In the left navigation, choose Images -> Templates

  3. Select the VM template you want to work with.

  4. Go into System Preferences -> Network

  5. Change the “Template type” to “VNF”

  6. Click on the OK button.

Updating the VNF settings of a VNF template

Users need to add the VNF nics and VNF details of the VNF templates.

  1. Log in to the CloudStack UI as an administrator or end user.

  2. In the left navigation, choose Images -> Templates

  3. Select the VNF template you want to work with.

  4. Click on the “VNF settings” tab of the VNF template

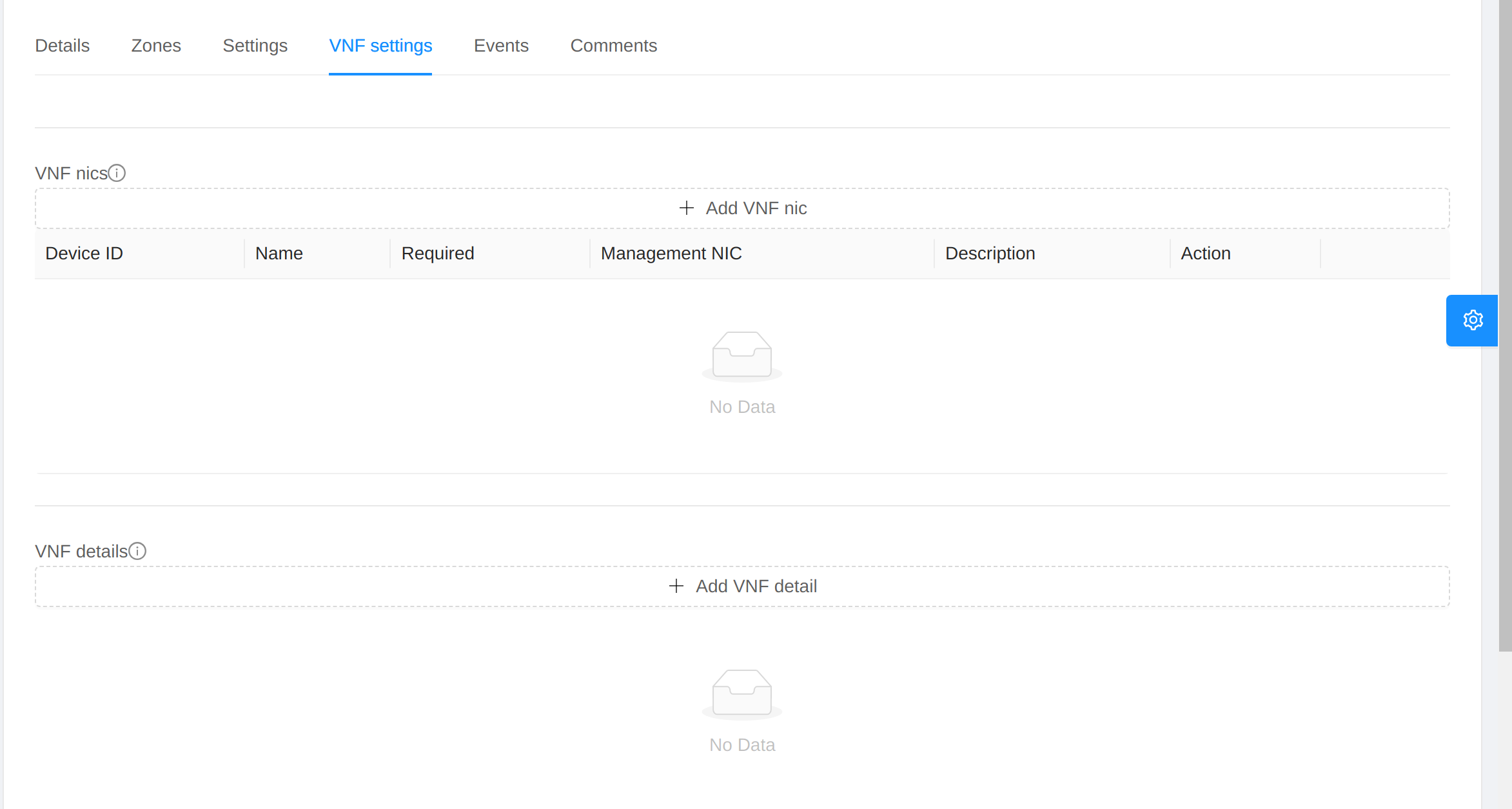

    VNF settings of VM template

  5. To add VNF nics, click on the “Add VNF nic” button

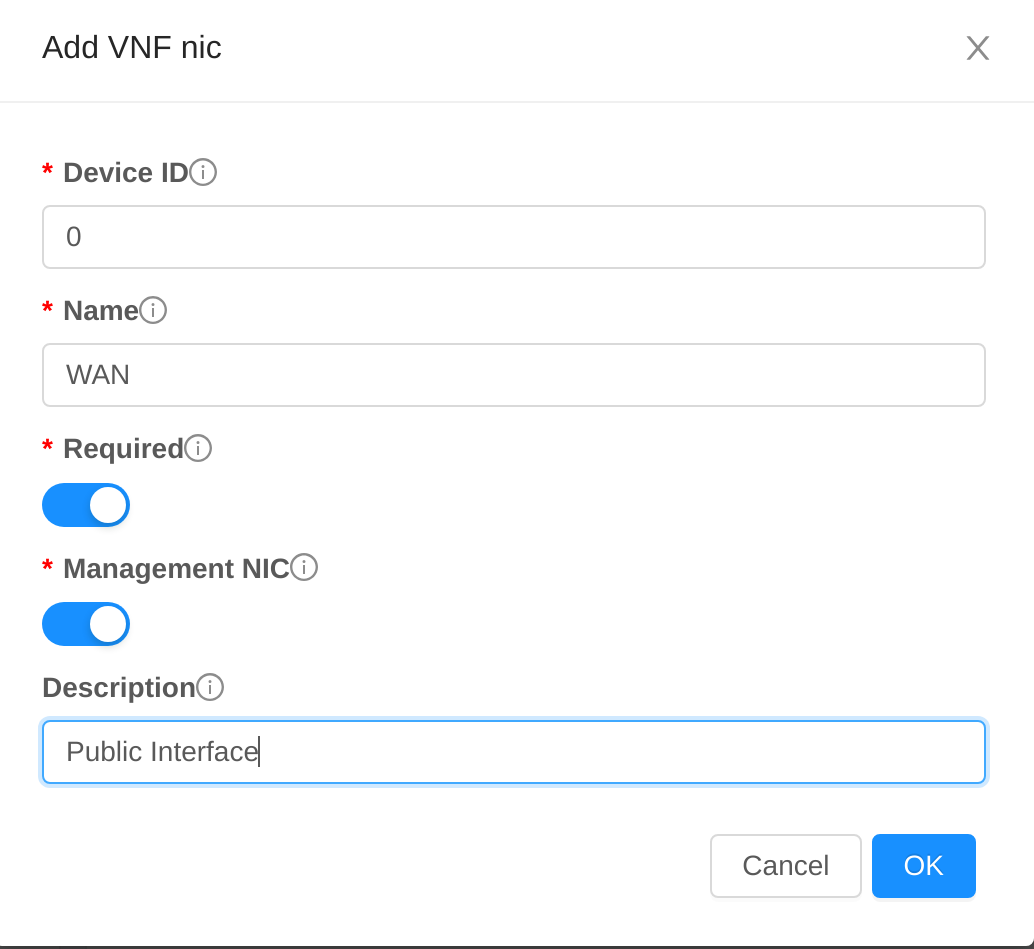

    Add VNF nic

    The following parameters are supported.

    • deviceid: The device ID of the VNF nic. The device id must be consecutive and start from 0.

    • name: The name of the VNF nic.

    • required: True if the VNF nic is required. Otherwise it is optional. It cannot be true if a preceding nic is optional.

    • management: True if the VNF nic is a management interface. False otherwise

    • description: The description of the VNF nic.

    When VNF nics are added, users will see the list of VNF nics.

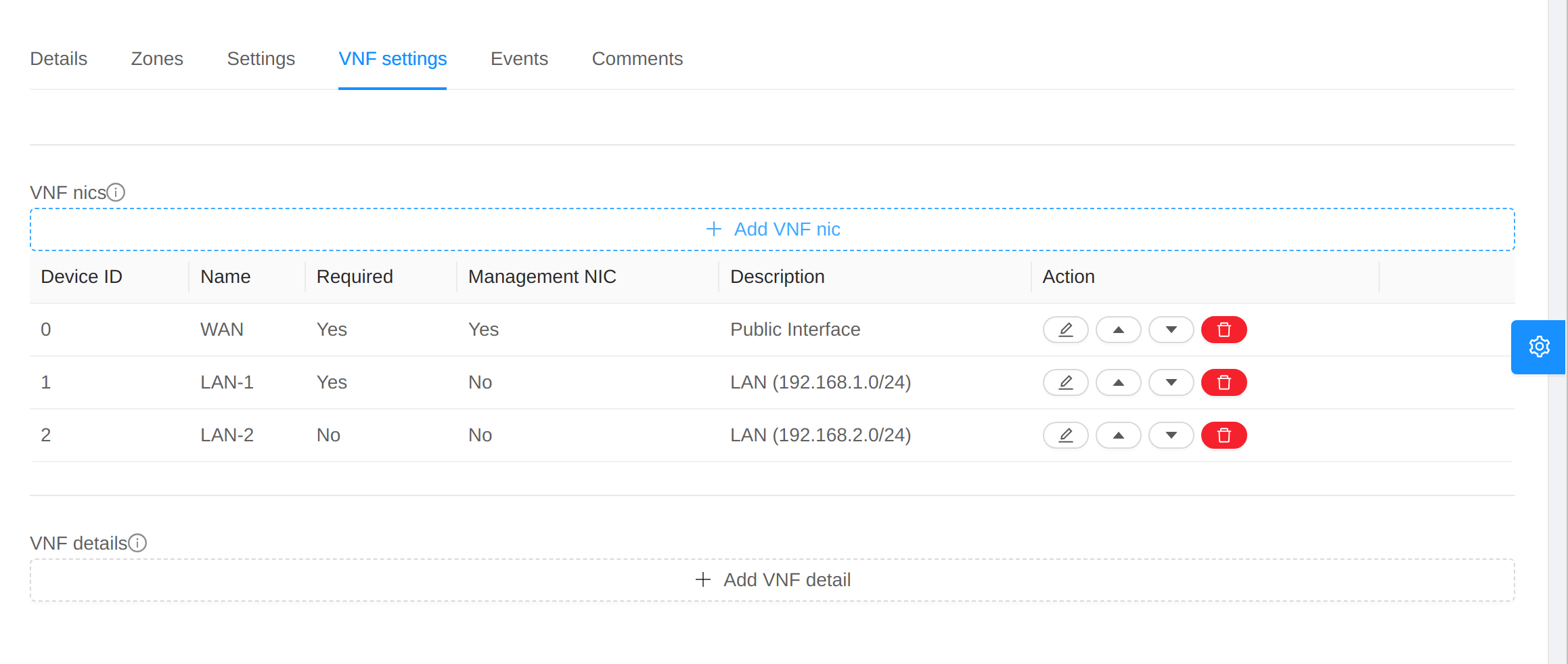

    List of VNF nics

  6. To add VNF details, click on the “Add VNF detail” button

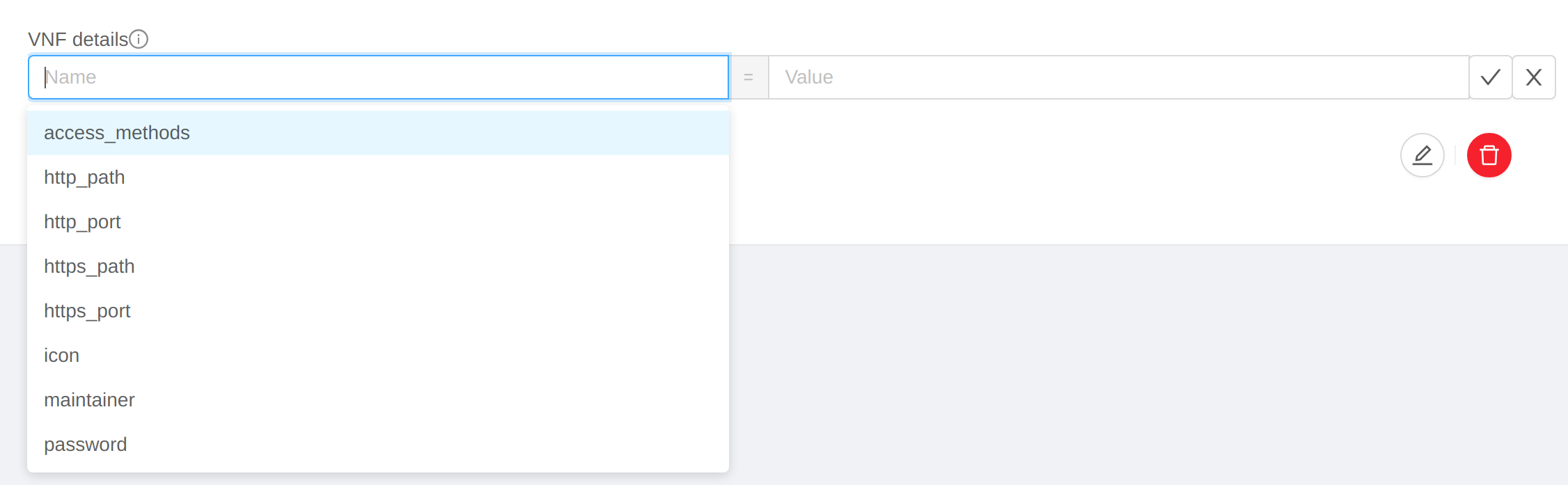

    Add VNF detail

    The following parameters are supported.

    • name: The name of the VNF detail. The valid values are: ACCESS_METHODS, USERNAME, PASSWORD, SSH_USER, SSH_PASSWORD, SSH_PORT, WEB_USER, WEB_PASSWORD, HTTP_PATH, HTTP_PORT, HTTPS_PATH, HTTPS_PORT, ICON, VERSION, VENDOR and MAINTAINER

    • value: The value of the VNF detail. If the name is access_methods, the valid values are: console, http, https, ssh-key, ssh-password

  7. To edit or remove VNF details, click on the corresponding icon of each VNF detail.

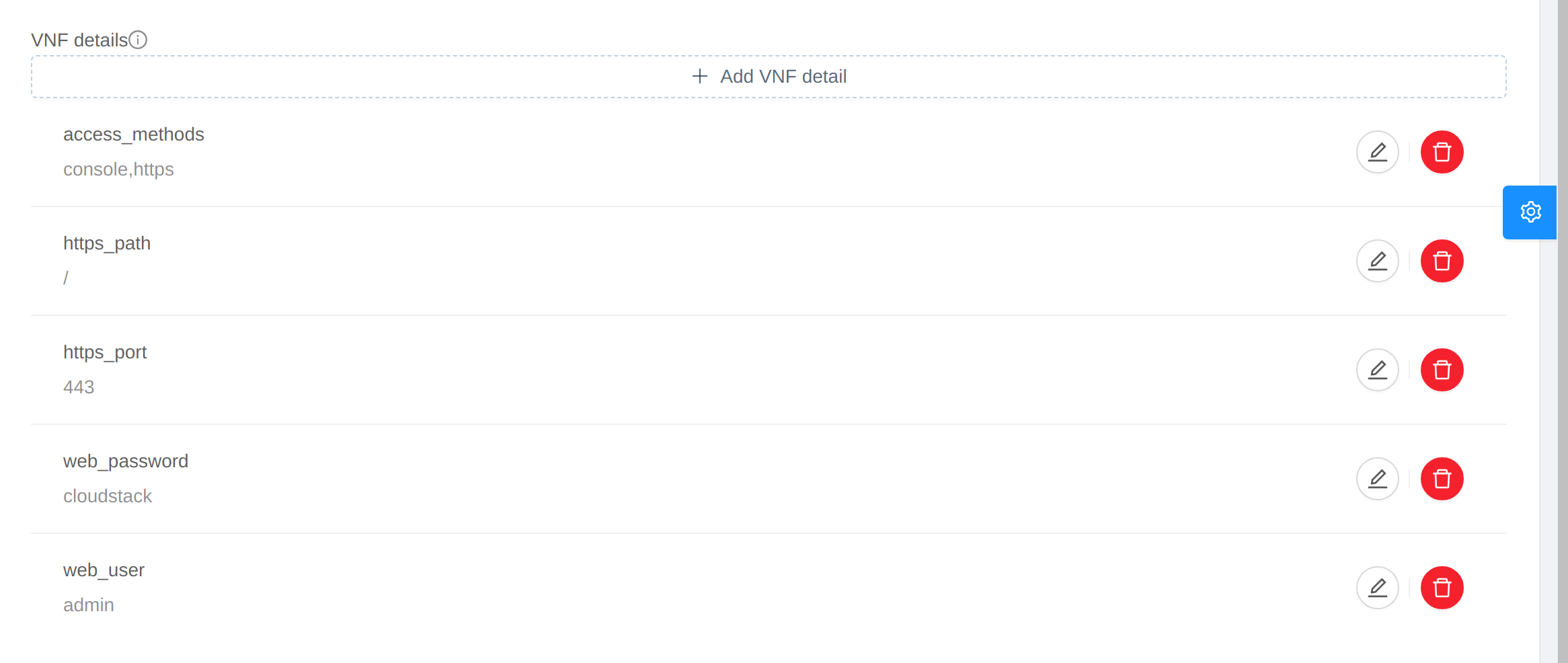

    List of VNF details

Deploying VNF appliances

  1. Log in to the CloudStack UI as an administrator or end user.

  2. In the left navigation, choose Network -> VNF appliances

  3. Click on the “Add VNF Appliance” button.

    For more information, see “Creating VMs”.

  4. Choose the networks you want to add to the VNF appliance

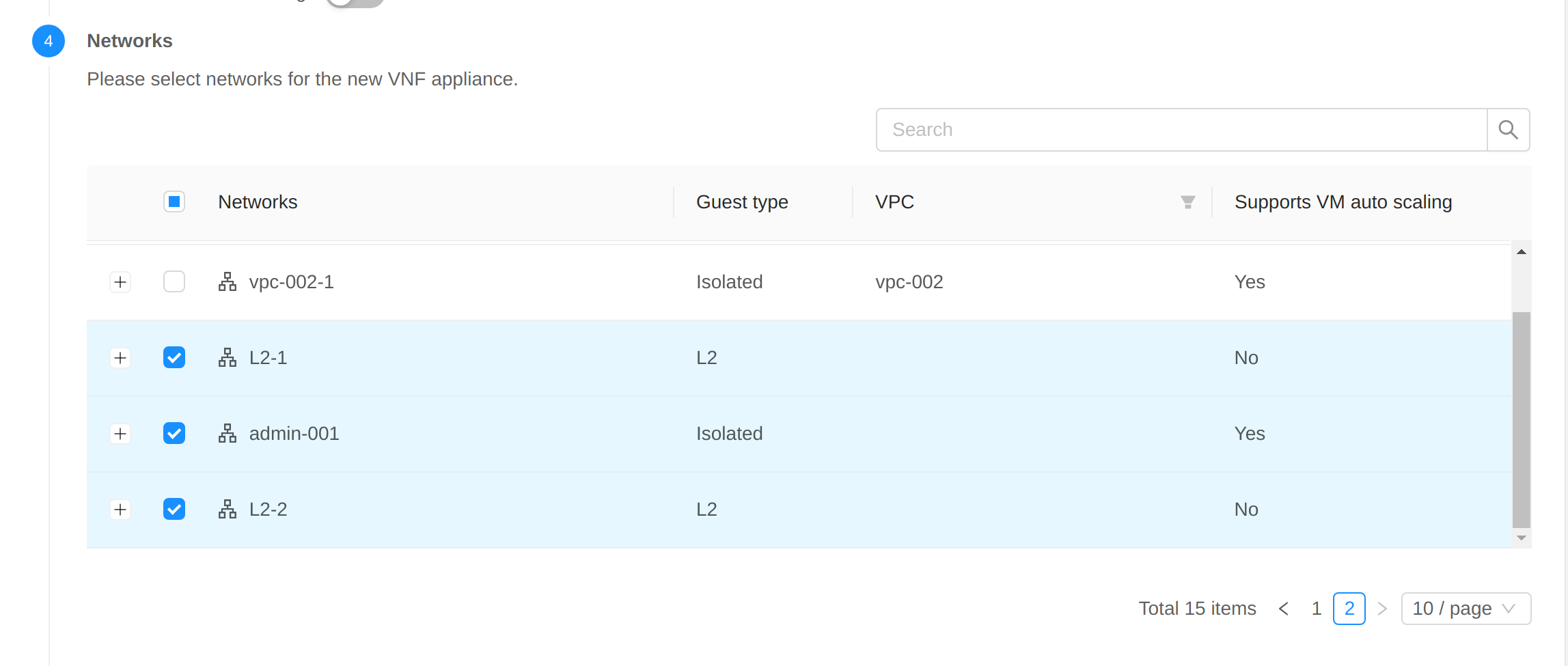

    Select networks for VNF appliance

  5. In the “VNF nics” step, choose the network each VNF nic will use

    Specify VNF nics of VNF appliance

    The following parameters are supported, if the management network is an Isolated network or Shared network with security groups.

    • Configure rules for VNF management interfaces. False by default.

    • Source cidr list of rules. It is The CIDR list to forward traffic from to the VNF management interface. Multiple entries must be separated by a single comma character (,). The default value is 0.0.0.0/0.

    Note

    The following network rules will be applied.

    • If management network is an isolated network, CloudStack will acquire a public

    IP, enable static nat on the VNF appliance, and create firewall rules to allow traffic to ssh/http/https ports based on access_methods in VNF template details.

    • If management network is a shared network with security groups, CloudStack will

    create a new security group with rules to allow traffic to ssh/http/https ports based on access_methods in VNF template details, and assign to the VNF appliance.

    • If management network is a L2 network, VPC tier or Shared network without security

    groups, no network rules will be configured.

  6. Click on the “Launch VNF appliance” button

When the VNF appliance is deployed successfully, you will see the VNF appliance on the “VNF appliances” page.
